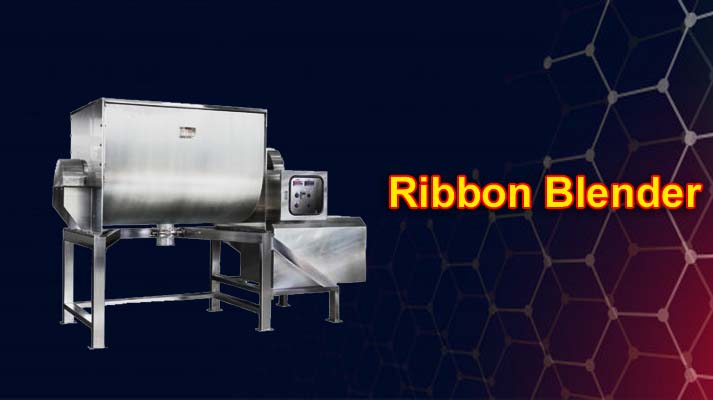

Ribbon Blender

Ribbon Blender

Ribbon blender consists of a U-shaped horizontal trough containing a double helical ribbon agitator that rotates within. The agitator’s shaft is positioned in the Centre of the trough and has welded spokes on which the helical ribbons (also known as spirals) are welded. Since the ribbon agitator consists of a set of inner and outer helical ribbons, it is referred to as a “double" helical ribbon agitator. The gap between the ribbon’s outer edge and the internal wall of the container ranges from 3 to 6 mm depending on the application. Internal and external ribbon spirals on the agitator shaft located with the blender container. The ribbon agitator is powered by a drive system comprised of a motor, gearbox, and couplings.
